Create a Windows 7 or later version install disk missing on El Capitan

on 6 November, 2015 in Blog | 61 comments

I first noticed “Create a Windows 7 or later version install disk” was missing from Boot Camp Assistant after installing El Capitan. So how to we solve this you ask? Read through the rest of the article to find out.

bootcamp before

Prerequisites:

1. Xcode (can be downloaded and installed from App Store)
2. Free time!



Let’s begin:

1

Open Terminal and copy Info.plist file of Boot Camp on your Desktop using below command:

$ cp /Applications/Utilities/Boot\ Camp\ Assistant.app/Contents/Info.plist Desktop/

2

Right click on the new file Info.plist found on the Desktop and select Open with -> Xcode.

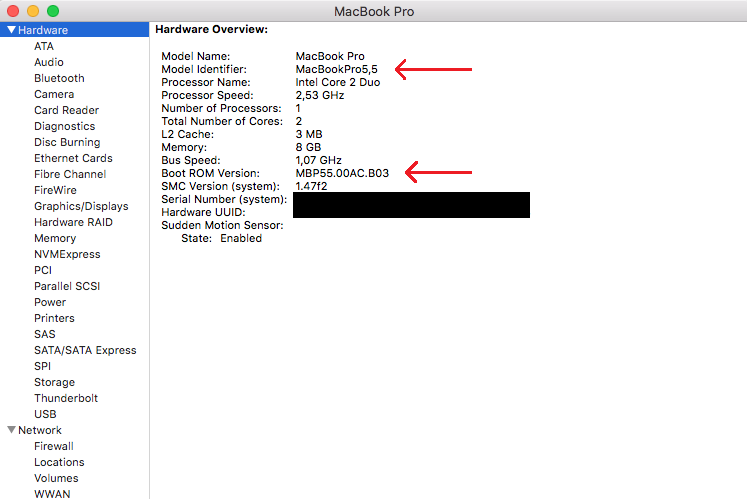

Add new item in section DARequiredROMVersions. The new item value can be found by typing “System Information” in the Spotlight Search (Command + Space).

system information

Add new item in Section PreUSBBootSupportedModels. The new item value can also be found in System Information.

Then edit PreUSBBootSupportedModels and delete the “Pre” to make it become USBBootSupportedModels.

If your MacBook model exists in section Win7OnlyModels, make sure to remove it from there.

Then Save and Exit Xcode.

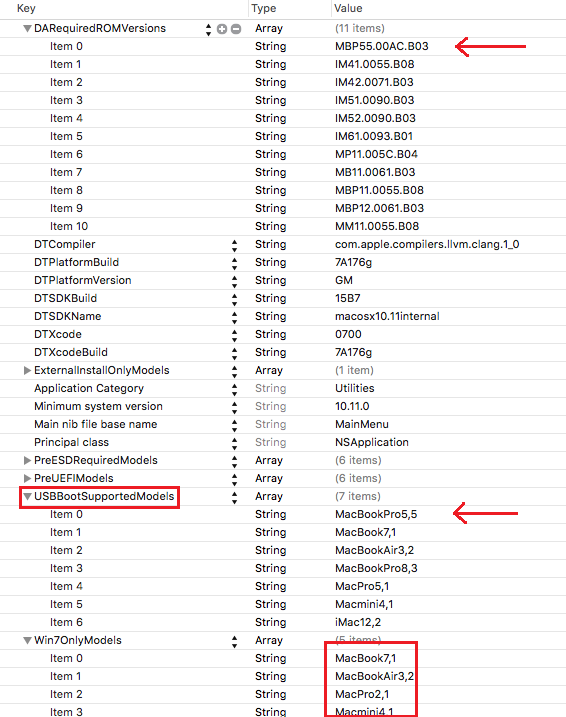

Final file will look like this:

info.plist edit



Change the ownership of the new file to match the original:

$ sudo chown root:wheel Desktop/Info.plist

Above command will ask you to enter the administrator password so make sure you have that.

3

Reboot in Recovery Mode by having pressed the Command + R buttons while the MacBook starts.

Navigate to Utilities and then Terminal.

Enter below command which will cause to disable System Integrity Protection (SIP) and restart the MacBook:

$ csrutil disable ; reboot

Disabling SIP will allow us to replace the original Info.plist with the modified one.



4

Once booted back to normal mode, use below command in Terminal to replace the old Info.plist with the modified one.

$ sudo mv Desktop/Info.plist /Applications/Utilities/Boot\ Camp\ Assistant.app/Contents/



5

Reboot the machine back in Recovery Mode using Command + R keys while booting and enable back the SPI using this command:

$ csrutil enable ; reboot

All finished! Once Boot Camp Assistant launches again, the option “Create a Windows 7 or later version install disk” will appear.

bootcamp after

    61 Comments

  1. Millions of thanks for this well-written description. I have only one additional query: My interest is in iMac 12,1 and wanted to know how I can disable built-in optical drive in the booting process and force iMac to read/boot from USB.

    Many thanks

    madhab mathema

    November 8, 2015

    • You can press Option key while booting and it will let you choose the drive you want to start.
      In case you want a permanent solution, boot in Windows, right click on the Boot Camp icon in lower right corner and go into options where you can set the “primary” drive.

      ytsentas

      November 8, 2015

  2. I couldn’t change the file after changing ownership; thus changed file, placed in folder, then changed ownership back to wheel/root

    Bas

    November 16, 2015

    • Thanks for the feedback! Instructions have been updated accordingly.

      ytsentas

      November 16, 2015

  3. change mv Desktop/Info.plist /Applications/Utilities/Boot\ Camp\ Assistant.app/Contents/ to
    sudo mv Desktop/Info.plist /Applications/Utilities/Boot\ Camp\ Assistant.app/Contents/

    sanjeev

    November 17, 2015

    • when i enter this command it asks me to override
      is that a yes or no? and how you enter that?
      thank you

      Armando

      January 10, 2016

    • it says : operation not permitted

      Armando

      January 10, 2016

    • says: operation not permitted

      Marcos

      May 19, 2016

    • return message “operation not permitted” after Y to override

      Marcos

      May 19, 2016

      • dont tybe $ in terminal

        max

        June 20, 2016

  4. I did all the above and still it is not working!! I still can’t see the option “Create a Windows 7 or later version install disk”.

    Mohamed

    November 28, 2015

    • I figured it out. I missed this step “Then edit PreUSBBootSupportedModels and delete the “Pre” to make it become USBBootSupportedModels.” I did and it works now.

      Mohamed

      November 28, 2015

  5. Does this only allow the 64-bit version of Win10 to be installed? It’s not letting me use the 32-bit ISO … but supposedly my MBP won’t support the 64-bit version. Guess I’ll find out!

    Teejay

    December 2, 2015

    • Try using another image of windows

      ytsentas

      December 2, 2015

      • I tried Win10 64-bit, Win10 32-bit, and Win8.1 32-bit. No luck, it tells me I can only install Win7. I don’t see my MBP in the list of Win7OnlyModels either. Ugh.

        Teejay

        December 4, 2015

        • What is your model?
          You should remember that models in string tags are read by bootcamp as “up until x”, so in my case removing pre in PreUSBBootSupportedModels somehow didn’t work, but changing MacBookPro8,3 to MacBookPro7 in there worked. So if in in Win7OnlyModels there is a string like MacBookPro5,5 and your model is MacBookPro5,1 then your model IS in the list and you should fix a string MacBookPro5,5 to MacBookPro5 or MacBookPro4 and so on.

          kibin

          January 1, 2016

  6. if you modify the list of “Win7OnlyModels” in info.plist file, you can install other OS than Win7.

    Min

    December 28, 2015

  7. All goes OK until I get to part where moving the Info.plist file is required. Am getting an “override root/wheel” message that requires a Y/N confirmation

    Do I take Y or N?

    Badly need to get Win 7 onto this new iMac for work purposes and am wasting a lot of time on this so any help greatly appreciated

    Frank Scanlon

    December 31, 2015

    • Go on and replace it. Remember that System Integrity Protection (SIP) needs to be disabled in order to be able to do that.

      ytsentas

      January 17, 2016

  8. GREAT INSTRUCTIONS! Thanks. Followed them all, everything went well. Boot Camp Assistant showed the new option to create Windows 7 or later install disk. Selected the option to create install USB, and the option to install Windows on a separate drive. BCA created the USB install disk, and then proceeded to install. The destination disk was renamed Bootcamp, and then it seemed to boot to the USB install disk. At that point I got a black DOS type screen saying there was no boot disk available, please insert boot disk and press any key. No joy after that. This is a MacPro3,1 running El Capitan 10.11.2. I am attempting to install Win10_1511_English_x64.

    T Bruce

    January 9, 2016

  9. Currently running El Capitan on a mid 2010 Macbook Pro 13 in (MacbookPro7,1). When I follow these directions I only have the options “Create a Windows 7 install disk”, “Download latest windows support…”, and “Remove windows 7”, thus I am unable to load the Windows 10 64bit ISO I had downloaded onto a USB using BCA. Any suggestions on changing my options to windows 7 or later? Thanks!

    Jack

    January 9, 2016

    • I also have a mid 2010 model and have the same problem. Have you found a solution?

      Thomas

      January 23, 2016

      • Bump… This doesn’t quite do the job for MacBookPro7,1 unfortunately.

        Nick

        February 10, 2016

    • You need to add your model identifier, at this case, you need to add “MacbookPro7,1” on PreESDRequiredModels, PreUEFIModels, and USBBootSupportedModels. And do not forget to delete the “Win7OnlyModels” section. Hope this helped. ^^d

      Ether

      March 10, 2016

  10. felt like I achieved something today! thankyou very much!

    marvin

    January 20, 2016

  11. Did all the above. checked twice. Still, bootcamp wants the windows cd. it does not want to proceed to partitioning the hd before having a cd inserted into the drive which does not exist any more because I swapped it for a bigger HD.

    Bernhard

    January 23, 2016

  12. I have been trying to install WIN7 on my iMac12,1 using USB installation for the past 6 months with no luck. I followed the instruction posted on this site but when I try to change the ownership of Info.plist (save on desktop) I get this error on Terminal:-bash: $: command not found. What wrong did I do? Grateful for any guidance

    madhab mathema

    February 28, 2016

  13. I have been trying to install WIN7 on my iMac12,1 using USB installation for the past 6 months with no luck. I followed the instruction posted on this site but when I try to change the ownership of Info.plist (save on desktop) I get this error on Terminal:-bash: $: command not found. What wrong did I do? Grateful for any guidance.
    iMac12,1 on OS X EI CAPITAN

    madhab mathema

    February 28, 2016

    • Start writing the command from sudo

      Luca

      May 31, 2016

  14. Stuck on step one cannot get the copy command in terminals to work.

    jpower

    March 9, 2016

  15. Nvm i got thanks

    power

    March 9, 2016

  16. Hi,

    Does this still work ? I have a MacBook Pro (Retina, 15-inch, Mid 2015), and the instructions did not work. The thing is, that I copied bootcamp to another location and modified plist there. Does it needs to be the exact one in utilities, or can I do this on a “copied” application.

    Regards,
    Adrian

    Adrian

    March 17, 2016

  17. I still get the message “not overwritten” in terminal while changing the info.plist. How do I type the answer to (y/n [n])?

    Alxcors

    March 17, 2016

  18. Thanks saved my life i was finding strange that having the latest version of bootcamp 6.0.1 was getting less options than the bootcamp 5.1.3 on yosemite and with more options i tried searched for that version of the app but it was the configure file in the end i did the changes and managed to create a usb boot disk for windows 10 on a mac pro 2,1.
    thanks

    diaz

    April 14, 2016

  19. I am doing step 4, but it occur error command not found.

    tran tuyen

    April 14, 2016

    • You’re probably copy and paste the command … You should copy/write without the $ sign, starting from sudo

      Luca

      May 31, 2016

  20. Excelente, funciono de inmediato 🙂

    Albert

    April 18, 2016

  21. It did not work on Mac Pro 6,1 🙁 Still cannot see the windows 7 screen and when trying to install the 64 bit windows 7 professional ISO file it tells me that requires Windows 8 or up.

    Arturo Lorenzo

    May 6, 2016

  22. It worked for me !! Thank you very much! You’re the best!

    Luca

    May 31, 2016

  23. Hi there,
    Thanks for this great instruction.
    Followed it but stuck on copying the file from desktop to boot camp contents
    “sudo mv Desktop/Info.plist /Applications/Utilities/Boot\ Camp\ Assistant.app/Contents/
    override rw-r–r– root/wheel for /Applications/Utilities/Boot Camp Assistant.app/Contents/Info.plist? (y/n [n]) Y
    mv: rename Desktop/Info.plist to /Applications/Utilities/Boot Camp Assistant.app/Contents/Info.plist: Operation not permitted”
    Any idea of what I did wrong??

    Sen

    June 26, 2016

    • Did you disable System Integrity Protection (SIP) and restarted?

      ytsentas

      June 27, 2016

  24. Hi,

    I have followed the instructions but when attempting to install Windows 10 for the first time I receive the message :-

    “Boot Camp only supports 64-bit Windows 8 or later installation on this platform. Please use an ISO file for 64-bit Windows 8 or later installation.”

    Thanks,

    Nick.

    Nick Goodwin

    July 3, 2016

  25. Hello, thanks for the great instructions.

    I have followed all the steps exactly.

    -Copying the plist file to my desktop worked fine
    -Editing the plist file in Xcode worked fine

    However, on the next step, changing the ownership of the plist file, Terminal gives me the message “No such file or directory”.

    I can see the plist file sitting on my desktop, and I have not renamed it, so how can this be? What am I doing wrong?

    Christoph

    July 5, 2016

    • Forgot to mention: MacBookPro6,1 ; OSX 10.11.5

      Christoph

      July 5, 2016

  26. Works fine! Thanks! Of course demands some extra time, but…

    Antonio Carlos

    July 10, 2016

  27. Very minor tweak: When typing the chown and mv commands, start path with ~/Desktop as opposed to just /Desktop.

    Alan Hirshberg

    July 12, 2016

  28. Thanks for the clear explanation. Wet selecting the Windows 7 .iso file during the next bootcamp steps I got the message that the bootable usb can not be made because Bootcamp only supports on Windows version7 or higher..

    Wout

    July 14, 2016

  29. Thank you SO much! I spent hours trying to get Windows 10 on my system using other approaches and this was the only one that worked.

    jim

    July 21, 2016

  30. Thank you for the clear and concise instructions. This was driving me mad because I started with a fresh install of El Capitan after replacing my old MacMini 2010 drive with an SSD. My previous OS was El Capitan, but it was upgraded through the years and I had a working BootCamp Win7 Pro installation.

    And I learned some tricks! Thanks again.

    Johnny Pittsburgh

    September 5, 2016

  31. Have done this all on an iMac17,1 and still cannot get the option to do anything other than choose an iso image.

    Peter

    September 16, 2016

  32. Thank you for the great tips.

    S.Kittichon

    September 19, 2016

  33. Followed all instructions to the letter. Everything worked fine but El Cap Boot Camp on a new Air says it will only accept Windows 8 or later. Bummer. Any thoughts?

    Kyle Dennis

    October 4, 2016

  34. Thank you so much! I was trying to install windows 7 for 2 weeks and I finally got it

    John Milles

    October 9, 2016

  35. Thank you soooooooooooooo much, finally i van play PC games!

    Arvid Olin

    November 20, 2016

  36. A simpler solution is to simply copy Boot Camp Assistant from /Applications/Utilities to your Desktop. You can edit Info.plist without disabling SIP and you will automatically have read/write. Just run the version from your Desktop.

    Ahmed A.

    November 21, 2016

  37. hi, in the info.plist, i don’t have the section DARequiredROMVersions. what should i do?
    thank you in advance

    Meisam

    December 22, 2016

    • Same problem here.

      Arjenne

      February 14, 2017

  38. I quit, i have been at this for 6 hours straight and have done this multiple times but it still does not work. I want to die

    FluffyJames

    March 12, 2017

  39. Running win 7 successfully done.
    Macbook Pro 5,1 has being Macbook Pro 5 on Xcode after open the newly info.plst which using terminal app to enter command.
    Better make surely read the whole article including these comments above it.
    Don’t give up .
    Thanks the Blogger !!

    Otis

    March 29, 2017

  40. I copied and pasted the line of code from step 2 into terminal and says command not found

    Taylor

    April 3, 2017
